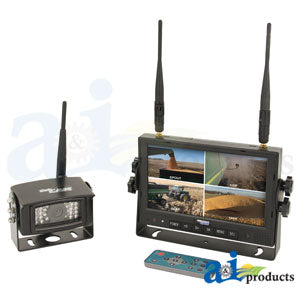

CabCAM 7" Digital Wireless Camera System, Quad Display

Need extra visibility on the farm, on the road, or at the job site?

CabCAM™ Wireless Camera Observation System can give you sight you need and the flexibility to get it. With its 4 camera capability, you can view all four cameras simultaneously The A-CDW7M1C system can eliminate blind spots and improve day and night visibility for trucks, RVs, trailers, garbage crushers, dump trucks, boat trailers, mobile homes, and more.

The CabCAM™ A-CDW7M1C camera system camera's are ruggedly constructed to withstand wet, rough, and dusty conditions. This infrared, easy-to-mount camera provides excellent wide-angle, night vision allowing users to see and work more safely and efficiently.

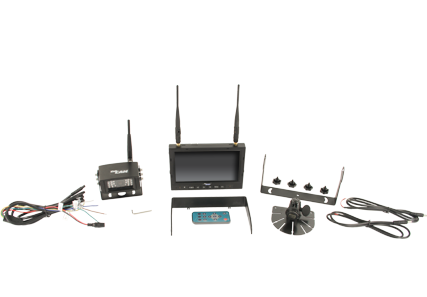

What's in the Box

• 7" Digital Wireless Color LCD Screen (A-DW7M)
• 4 camera capability, 2.4GHz
• AV conversion cable
• Ball swivel mounting bracket with mounting pad
• Stationary mounting bracket with thumb screws
• 8 Pin wiring harness for 12 to 24 volt systems. (A-HNS27)
• Remote control
• Sunshield
• AC power adapter
• DC adapter wire 1 meter
• Cigarette lighter adapter
• Operator Manual


7" High Resolution DIGITAL Transmission QUAD monitor with antennas. Four camera capability 2.4GHz digital wireless receiver with recording capability on Micro SD/TF Card (Max. 128G). Micro SD/TF Card not included.

The monitor includes: power indicator, remote receiving window, POWER button, MENU button, SEL button, channel selection, loudspeaker, support attaching slot and power supply terminal.

(1) Weatherproof Color Camera: Infrared Illuminators allow up to 32 feet of night visibility, image mirroring function, made to withstand off-road conditions, audio capabilities.

Each camera has an antenna and a power supply jack. Cameras require 12V to 24V power source.

Accessories: Ball Swivel Mounting Bracket with Mounting Pad, U-Support Mounting Bracket with Thumb Screws, 8 Pin Power Wire Harness with Jack for Power Adaptors,

(2) 3.25' DC Adapters, Sunshield, Full-Featured Remote Control.

This system can be expanded to support up to four cameras.

Must use part # DWC86 digital wireless camera. CDW7M1C NOT compatible with part #s DWR96 - CabCAM Digital Wireless Receiver, DWT34 - CabCAM, Digital Wireless Transmitter & DWC32 - Digital Wireless Camera.. They are NOT compatible with part #s DWR96 - CabCAM Digital Wireless Receiver, DWT34 - CabCAM, Digital Wireless Transmitter & DWC32 - Digital Wireless Camera.

4 DWC86 cameras can be "paired" to this monitor. Cameras can only be "paired" to one monitor at a time. For situations where one camera needs to be viewed on several monitors see our analog wireless systems.

    Dim A (1): The analog system A-WL56M2C is the only unit currently offered with the capability of using multiple monitors (Fleet of trucks etc)

    Volt: For 12 To 24 Volt Systems
